CMA
Compact Modular ArchitectureBorn as a hybrid platform, developed into a full-fledged EV base. The XC40/C40 (now EX40/EC40) and Polestar 2 show how a platform can fundamentally improve within its lifespan: from front-wheel to rear-wheel drive, with major leaps in range and charging speed.
CMA is the EV platform of Geely Group, in production since 2020, with a 400V architecture. The CMA platform carries 3 models from 2 brands. The WLTP range of the current variants on CMA runs from 479 to 659 km.
Pick the car first, then the version — chemistry, battery and drive differ per version.
Platform schematic
Volvo EX40
Single Extended2025+ · EX40· verified| Battery (gross) | 82 kWh NMC |
|---|---|
| Battery (usable) | 79 kWh |
| Drivetrain | RWD |
| Power | 185 kW |
| Motors | 1× · 0 front / 1 rear |
| WLTP range | 576 km |
| Real range (estimate) | ±480 km |
| Consumption (WLTP) | 13.7 kWh/100 km |
| Consumption (real, estimate) | ±16.5 kWh/100 km |
| Max DC charging | 207 kW |
| 10 → 80% | ±32 min |
| Added per 10 min | ±105 km |
Charging speed per variant
peak DC charging power · 10 → 80%
Models on this platform
Platform evolution
- 2017CMA debutAs an ICE/hybrid platform beneath the XC40
- 2020First BEVs78 kWh Twin AWD (149 kW DC) — XC40 P8 & Polestar 2
- 2021Entry variants69 kWh FWD (XC40) and 64 kWh FWD (Polestar 2)
- 2023FWD → RWDNew rear motor: 69 kWh RWD + 82 kWh (207 kW DC)
- 2024EX40 / EC40Rebrand + Polestar 2 up to 659 km WLTP
- 202670 kWh entryNew entry pack with a higher charging peak for EX40, EC40 and Polestar 2
Frequently asked questions
- Which models are built on the CMA platform?
- The CMA platform carries Volvo EX40, Volvo EC40 and Polestar 2.
- Which group owns the CMA platform and how long has it been in production?
- The CMA platform was developed by Geely Group, has been in production since 2020 and runs at 400V.
- Which variant on the CMA platform charges fastest?
- The Volvo EX40 Single Extended charges on the CMA platform at a peak of 207 kW and goes from 10 to 80% in ±32 minutes.
- What is the WLTP range on the CMA platform?
- The verified variants on the CMA platform reach a WLTP range of 479 to 659 km.
Comparable cars in stock
These electric cars from our stock ride on the same platform. Inspected, warranted and delivered road-ready across Belgium.
Volvo C40
Recharge Core - PANO | CC | CAMERA

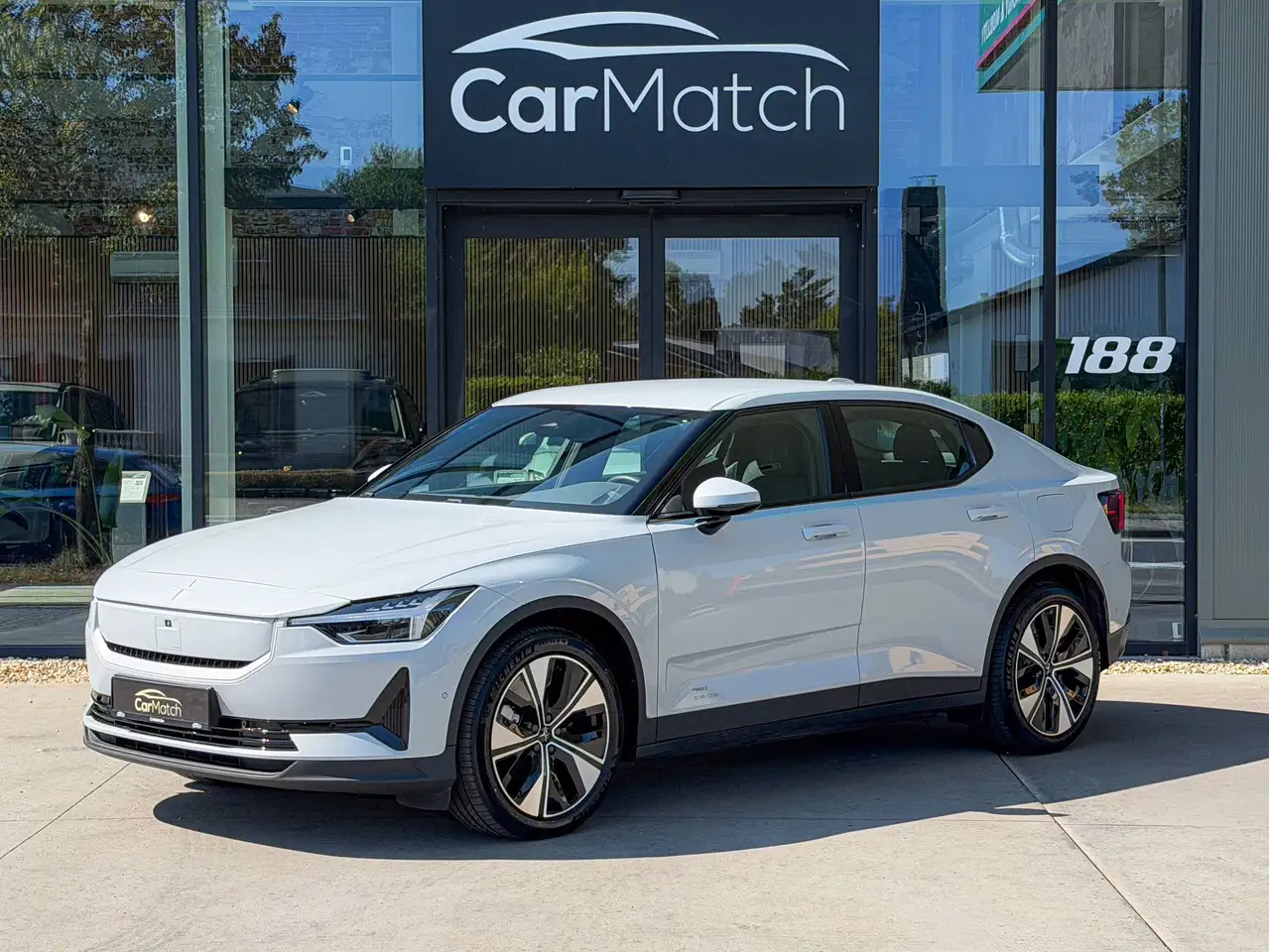

Polestar 2
Long Range Single Motor - ACC | CAMERA | KEYLESS
Polestar 2
Standard Range Single Motor - PILOT
Polestar 2
Long Range Single Motor - PILOT PACK | ACC | CAMERA
Polestar 2
Long Range Single Motor - PILOT | CLIMATE
Polestar 2
Long Range Single Motor - PLUS | PILOT | CLIMATE
Prices and availability are updated daily on carmatch.be. Range according to WLTP.
Go to the stock on carmatch.beVerify the specifications of each version before purchase or customer use. Real-world range is a CarMatch estimate for mixed driving, not a manufacturer figure. Battery values are gross packs; charging times are approximations. Not a homologation document, not an offer.
